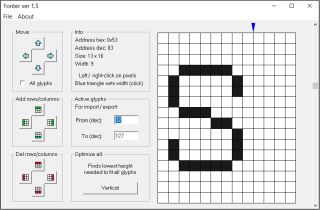

Embedded font designer (click for details)
- design your own fonts for embedded,
- imports Windows fonts,
- outputs file for C / FPGA compiler,
- free to use (work in progress)...
- written in C (Win32).

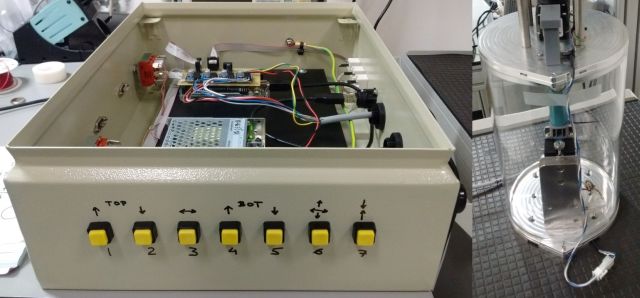

Remote experiment controller
- remotely controls mechatronics,
- used in European Synchrotron Radiation Facility,
- outputs for stepper motors and solenoids,
- built in synchroniser (high speed cameras),
- custom software for each experiment.

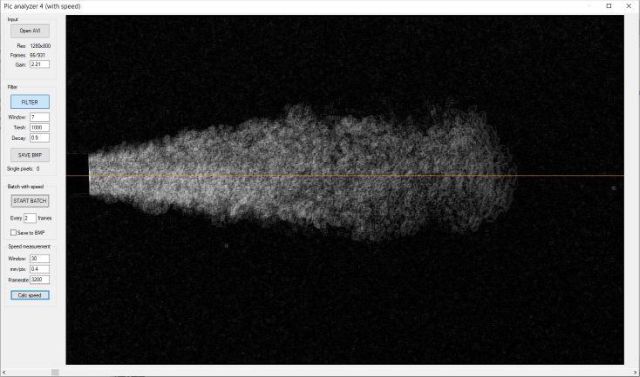

Picture analysis software
- loads in AVIs,
- detection of small signal on noisy background,
- used in high-speed Schlieren photography (gas imaging),
- calculates speed and angle of gas plume,
- C++ (Win)

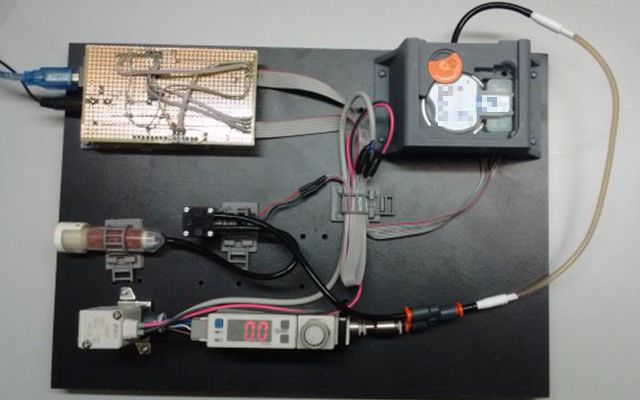

Gas sensor tester
- validation and calibration of gas sensors,
- flowrate, gas concentration, pressure logged to PC,
- fully automatic, needs PC and calibrated gas source,
- custom Win PC app (C++)

Gas sensor front-end
- low drift analog front-end,
- constant bias to electrochemical gas sensor,
- ADC built in (I2C),
- shape to fit customer's enclosure,
- EEPROM memory with calibration values

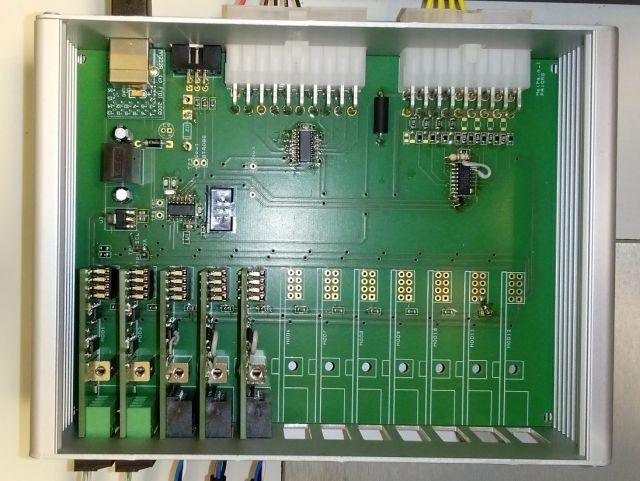

Metrology gauge controller
- connects to up to 12 metrology sensors:
 - mechanical displacement (RS485),
 - optical micrometers (RS232),
 - laser barriers (4-20mA),
- outputs for pumps, pneumatic valves,
- logs all data to PC attached,
- multiple AVR (Microchip) MCUs,
- custom Win PC app (C++)

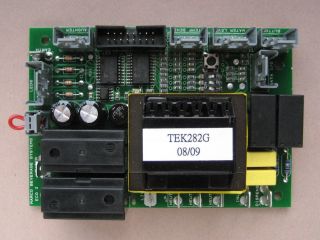

Water boiler controller
- built-in power supply (110/230V),
- LED display (on the other side),
- 2 power outputs (solenoid / triac),
- PID-like algorithm,
- controls water intake, tank levels, temperature,
- ST MCU

Water boiler controller
- built in power supply,
- LCD display (128 x 64),
- 4 power outputs (snubber-less opto-triacs),
- 24V DC outputs (pump, dispenser),
- inputs for temperature and water level sensors,
- algorithm for mixing hot and cold water,
- algorithm for tank level estimation,
- ST MCU

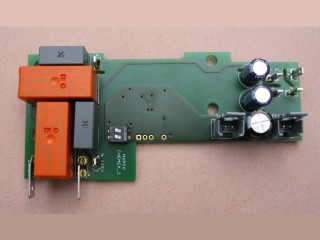

Coffee brewer controller
- 2 power outputs 120 / 230V (heater, hotplate),
- built in capacitor power supply (no isolation),
- inputs: level sensor, switches,
- ST MCU

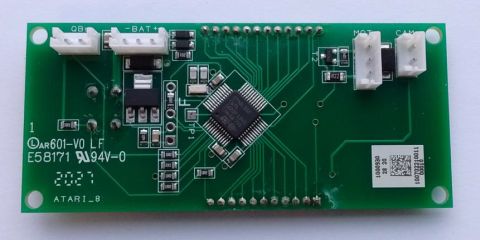

Cold brewer timer
- counts down 20 hours,
- 3V battery operated (ISBY < 7uA),
- drives valve servo motor,
- ST MCU

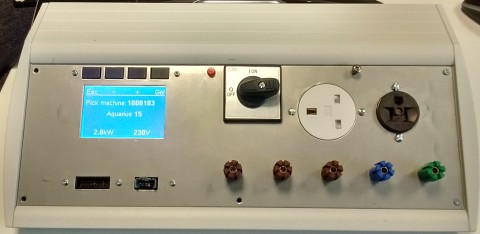

Production tester
- dry tests boilers at 120/230/400Vac,
- triggers outputs,
- measures/compares phase currents,
- verifies code revision (SD card),
- true RMS readout (DSP),
- ST MCU

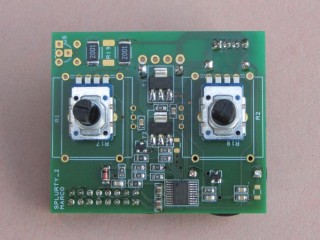

Coffee brewer controller
- 2 analog potentiometers as inputs,
- controls pump and dispense solenoid,
- calculates pulses for pulse brewing,
- linearization algorithm for pots,
- ST MCU

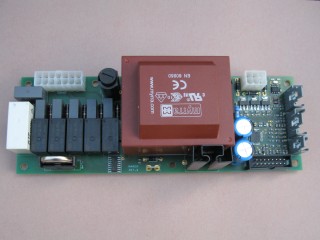

Coffee machine controller
- 6 power outputs 230V,
- 3 power outputs 24V DC,
- inputs: temperature and water level sensors,
- real time clock,
- connects to touch screen (UART),
- ST MCU

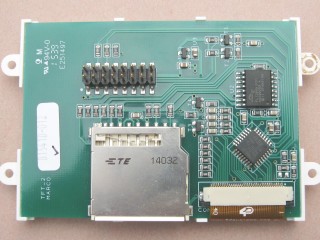

Touch screen controller
- 320 x 240 resolution TFT,
- resistive touch pad,
- built in NOR FLASH for icons,
- SD Card (FAT32) socket updates,
- UART comm to Jet PCB,
- ST MCU

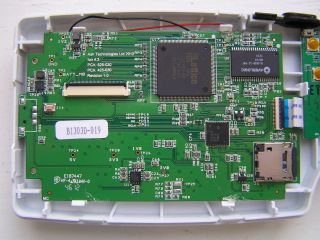

Low Vision / Inspection camera
- 3MP camera and 480x272 TFT LCD,
- video processing FPGA (Lattice),
- pictures stored on SD Card (FAT32),
- USB connection for PC,
- build in Li-Ion charger,
- liquid lens,
- auto-focus algorithm,
- Microchip MCU

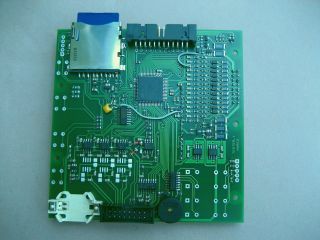

In-production tester (controller board)
- full electrical tests boilers / coffee machines,
- programs MCUs on target boards,
- true RMS read-outs (CTs on 3 phases),
- settings stored on SD Card (FAT32),
- RS-232 port for label printer,
- real time clock,
- graphical LCD display,
- ST MCU

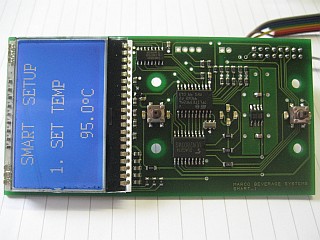

Water boiler controller
- extension to the standard boiler,
- live readout (0.5 degree accuracy),
- serial comm with basic boiler board,
- graphical LCD,
- ST MCU

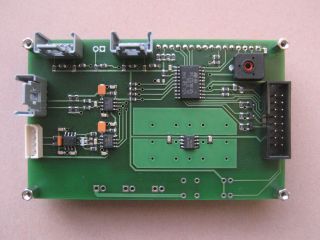

High-end boiler controller
- two temperature sensors (0.1C accuracy),
- load cell input (weighing scale),
- LCD display (alphanumeric),
- temperature kept within 0.2C,
- settings in EEPROM,
- ST MCU

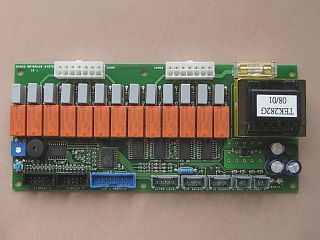

Coffee machine controller
- 13 outputs for solenoids, pumps and contactor,
- 15 inputs for push buttons, proximity sensors, thermistor and water level AC probes,
- 10 outputs for control LEDs,
- LCD display connector,
- embedded power supply,
- settings in EEPROM,
- ST MCU

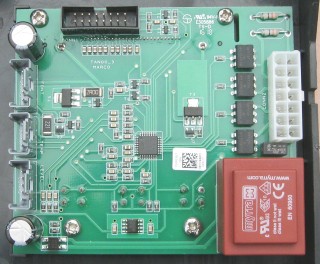

Water boiler controller
- one output for main heater (3kW),
- two outputs for inlet and dispense valves,
- outputs for LEDs and LCD display,
- inputs for push buttons, thermistor and water level AC probes,
- embedded power supply (230V AC input),
- settings stored in internal EEPROM,
- ST MCU

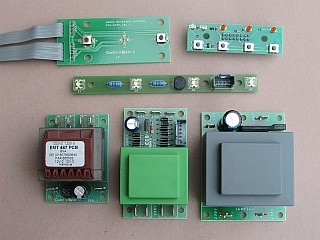

Additional / extension PCBs
- front panel user controls,
- backlight LED strip,
- 24V power supply,
- lock solenoid driver

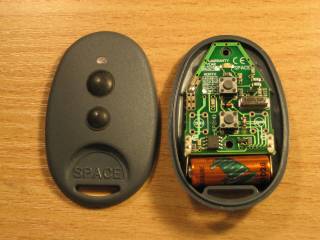

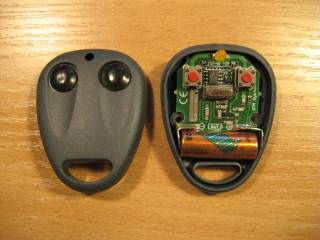

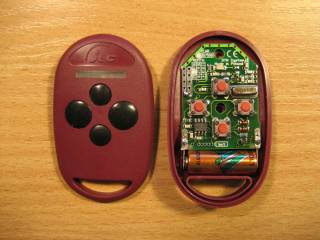

Radio remote control
- f = 433,92 MHz,
- Power: 3-4 mW EIRP (anechoic chamber),
- antenna gain: about -15 dBd,
- modulation OOK-A1D (on-off-keying),
- Keeloq encryption.

Radio remote control
- f = 433,92 MHz,
- Power: 3-4 mW EIRP (anechoic chamber),
- antenna gain: about -15 dBd,
- modulation OOK-A1D (on-off-keying),
- Keeloq encryption.

Radio remote control
- f = 433,92 MHz,
- Power: 1mW EIRP (anechoic chamber),
- antenna gain: about -20 dBd,
- modulation OOK-A1D (on-off-keying),
- Keeloq encryption.

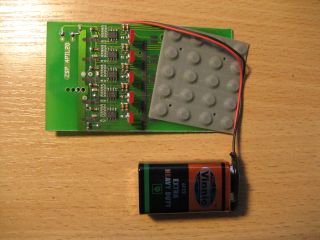

20 - channel radio remote control
- encoder board,
- carbon conductive paths for silicon keyboard,
- 9V DC supply,

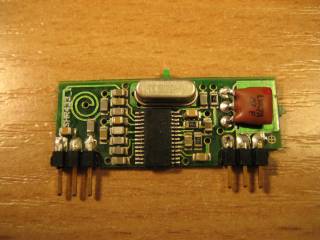

433MHz receiver module
- f = 433,92 MHz
- single superheterodyne,
- sensitivity: -108 to -112 dBm,
- bandwidth: 350 kHz,
- demodulator: OOK-A1D (on-off-keying),
- digital output.

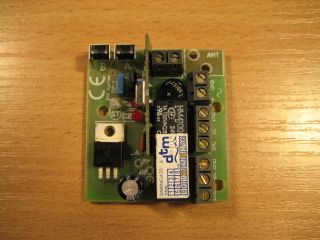

2 - channel, general purpose receiver
- f = 433,92 MHz
- Keeloq decryption,
- supply: 24V AC/DC,
- output modes: bistable, monostable, momentary,
- Microchip MCU,
- memory for up to 20 remotes.

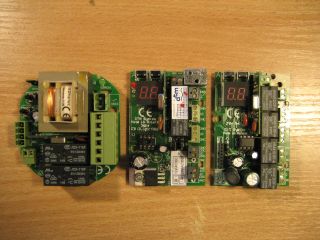

2 - and 4 - channel, general purpose receivers
- f = 433,92 MHz,
- Keeloq decryption,
- supply: 230V, 12-24V AC/DC (depends on model),
- output modes: bistable, monostable, momentary,
- Microchip MCU,
- memory for up to 20 - 700 remotes.

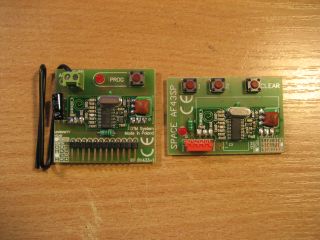

Internal receiver cards
- f = 433,92 MHz,
- Keeloq decryption,
- 1 or 2 output channels,
- memory for up to 25 remotes.
- Microchip MCU,

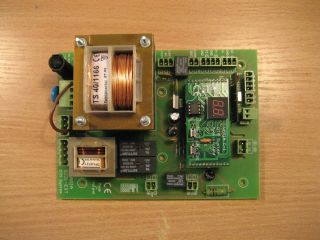

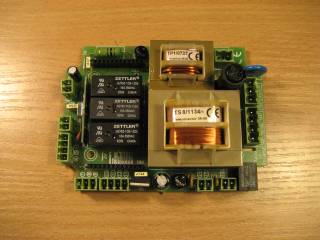

Gate controller for 1 motor
- f = 433,92 MHz,
- supply 230V AC,
- motor power up to 600W 230V AC,
- motor current measurement,
- inputs for safety switches,
- output for signal lamp,
- output for 24V AC accessories.

Gate controller for 1 motor
- f = 433,92 MHz,
- supply 230V AC,
- motor power up to 600W 230V AC,
- motor power regulation (4 steps),
- motor current measurement,
- inputs for safety switches,
- output for signal lamp,
- output for 12V, 24V AC accessories.

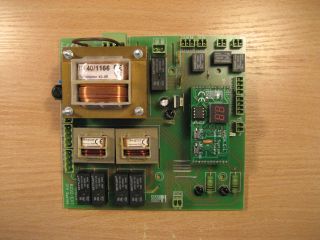

Gate controller for 2 motors
- f = 433,92 MHz,
- supply 230V AC,
- motors power up to 600W 230V AC (total),
- motor power regulation (4 steps),
- motor current measurement,
- inputs for safety switches,
- output for signal lamp,
- output for 12V, 24V AC accessories.

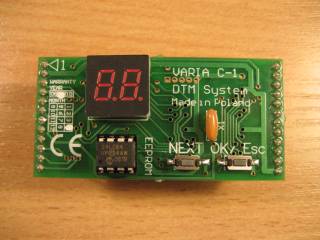

Microcontroller unit for gate openers
- Keeloq decryption,
- memory for up to 700 remotes,
- output relays buffers,
- 2 ADCs for motor current measurements,
- EEPROM socket (memory for up to 700 remotes),
- Microchip MCU.

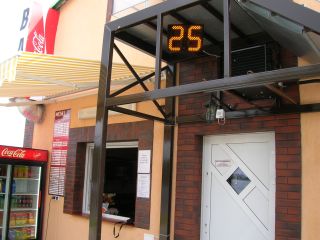

2 - digit universal display
- digits range: 00 - 99,
- digits height: 24 cm,
- RS 485 comm,
- 24V AC/DC supply,
- high brightness LEDs,
- signalling beeper,
- Microchip MCU.

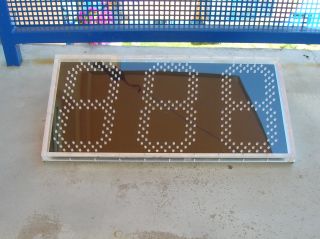

3 - digit universal display
- digits range: 000 - 999,
- digits height: 24 cm,
- RS 485 communication interface,
- 24V AC/DC supply,
- high brightness LEDs,
- Microchip MCU.

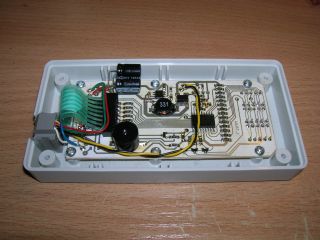

Controller for displays
- membrane keyboard,
- LED display,
- 2 universal inputs,
- powered by display,
- RS485 comm (RJ11),
- output for external beeper,
- 200m maximum cable length,
- Microchip MCU.

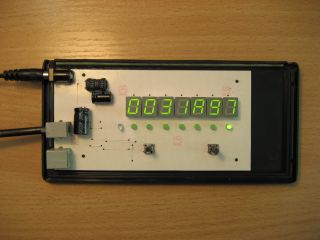

HCS200 Keeloq encoder programmer
- programs HCS200 (Microchip),
- display showing 28-bit serial number,
- 7 possible encryption keys,
- verify after write,
- supply 12-24 V AC/DC,
- Microchip MCU.

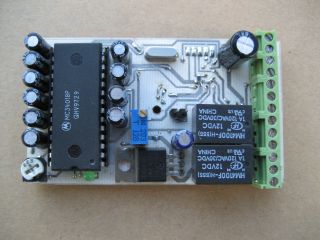

Intercom
- compatibility with door intercom,
- connects to local PABX (POTS),
- DTMF signalling,
- ring detector,
- active anti-local circuit,
- output for door lock 12V AC/DC,
- Microchip MCU.

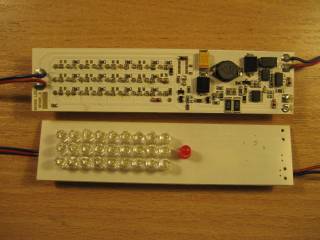

Battery LED lamp
- 27 white LEDs,
- status diode for charging / empty battery,
- SMPS charger with delta V detection,
- external supply: 12 - 24V DC,
- 3.6V / 7.2V NiMH batteries.

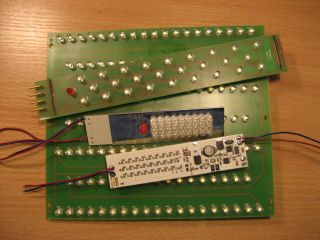

Other LED lamps
- versions with 27 - 127 LEDs,
- supply voltages: 12, 24, 36, 42, 110, 230 V AC/DC,

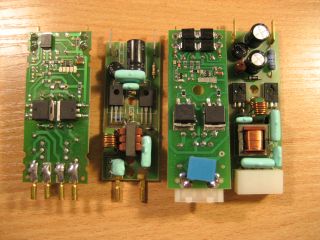

Fluorescent lamps ballasts
- lamps power range: 8, 9, 11, 18, 36W,
- supply voltages: 12, 24, 36, 42, 110, 230V AC/DC
- low voltage versions use Microchip MCU.

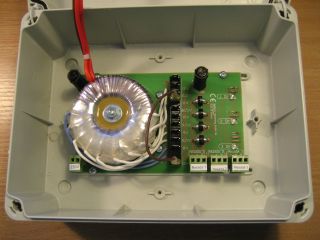

Power supply for ventilation fans
- output for 3 fans,
- input supply: 230V AC,
- output: 3 x 8-12V DC regulated (not stabilised),
- status indicators for every fan.

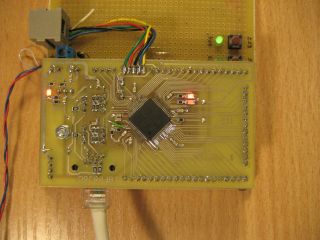

Ethernet test board based on Microchip controller
- test board equipped with microcontroller,
- Ethernet accessories (transformer, RJ45),
- HTTP server based on Microchip's code.

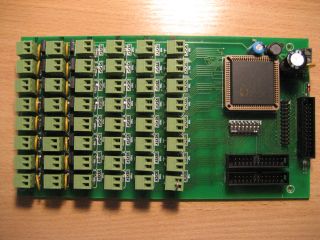

Universal parallel I/O card
- LPT port extension up to 48 input / outputs,
- TTL inputs, OC outputs (60V max),
- based on Xilinx CPLD,
- 12 - 24 V AC/DC supply

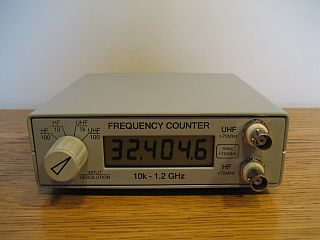

Frequency counter (click for details)
- Frequency range: 10kHz - 1.2GHz,
- 4 time bases,
- sensitivity <30mV,
- fast responding (refresh rate),
- custom made metal enclosure,
- built in power supply 230V,
- 1ppm reference oscillator.
